100 FA-AAC with Muffler: QQ

Product Features

• Same mounting dimensions as O.S. 91 Surpass
• 1.00 size in a .91-size case

Overview

?

Super-Sized Power for Your .60-Size Plane

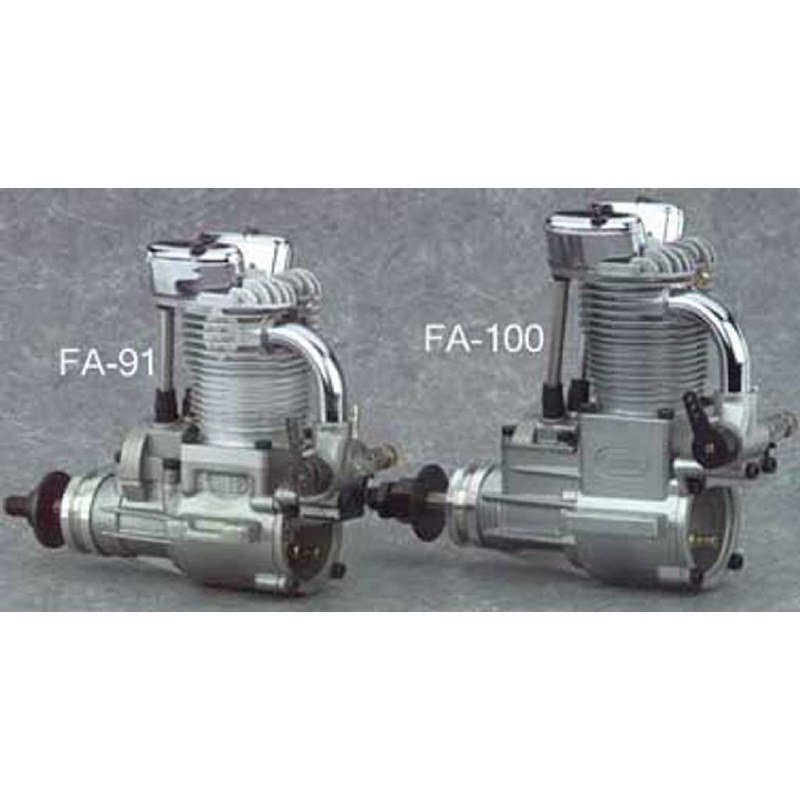

The FA-91 is one of the most popular selling engines in Saito's extensive line of four-strokes. The .91 fits perfectly into most airplanes designed for .60-size two-strokes offering the ability to swing larger diameter props with more thrust than the two-stroke. Many pilots simply prefer the powerful sound of a four-stroke. Now Saito? is offering a new engine that offers even more power than the .91 but that's similar in size and weight.

Saito's new FA-100 will turn an APC 14 x 8 prop 300 to 700 rpm more than either the Saito .91 or O.S. .91. At only 19.2 ounces (less muffler) it weighs nearly 2 ounces less than the O.S as well! The Saito FA-100 is not just a punched out .91. It features a newly tooled case that shares the mounting dimensions of the O.S. 91. This allows it to be used with the many after-market engine mounts already available to fit this engine.

The Saito 100 idled and transitioned beautifully from the first start due to the included new Hangar 9? Super Plug (HAN3011) that now comes with all Saito engines. This plug greatly improves idle and transition in all four-stroke engines. After a short slightly rich break-in we peaked the needles at 3-5/8" out on the high-speed and a ? turn in from flush on the low-speed needle.

Our staff commonly uses 30% heli fuel in Saito engines as it not only gives better top-end performance but it runs smoother gives a better transition and runs cooler.

In flight the FA-100 was one smooth operator. Transition and idle were clean and crisp with instantaneous response. No dead sticks occurred in the first six test flights despite purposefully long high-altitude idles followed by rapid full-throttle transitions. The 30% helicopter fuel gave a noticeable boost in power plus the added oil in the fuel adds a nice trail of smoke.

If you're looking for a powerful lightweight four-stroke to power your latest .60 through .90-size project you don't have to settle on a 91. Check out Saito's new FA-100.
?

Specifications

?

Type:?4-stroke
Displacement:?1.10 cu in (17.10 cc)
Bore:?1.14 in (29.0 mm)
Stroke:?1.02 in (26.0 mm)
Cylinders:?Single - Chrome Plated
Total Weight:?20.9 oz
Engine (Only) Weight:?19.5 oz
Muffler Weight:?1.4 oz
Crankshaft Threads:?8x1.25mm
Benchmark Prop:?14 x 8 APC
Prop Range:?13x9 - 14x10
RPM Range:?2 000 - 11 000
Fuel:?10%-30% Synthetic
Mounting Dimensions:?115 x 60 x 128 mm
Muffler Type:?Cast
Cylinder Type:?AAC
Carb Type:?Barrel 2 Needle Valve
Crank Type:?Ball Bearing
