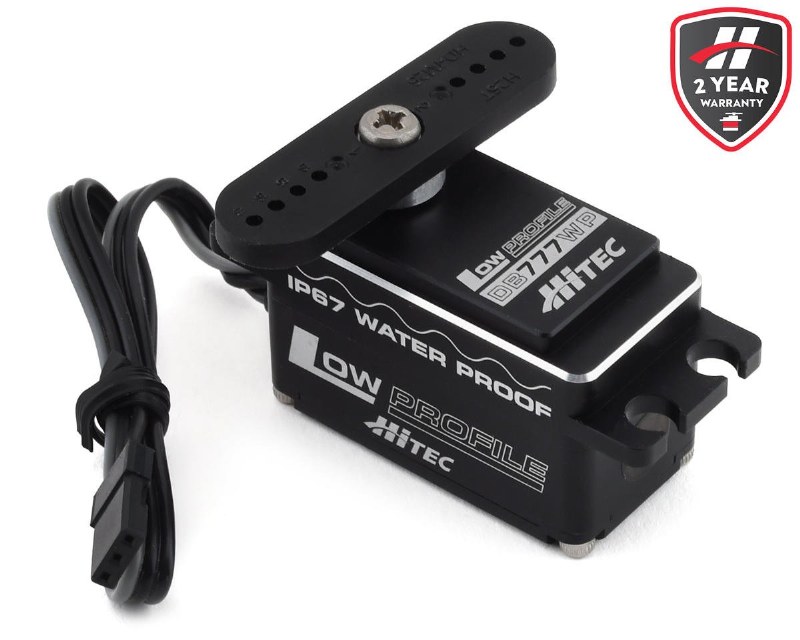

32-Bit BL Low Profile Metal Case WP Servo DB777WP

Overview
Back to Top ^

Key Features
Key Features
Full Programmability
IP-67 Waterproof Rated
Ultra Efficient Brushless Motor
32-Bit MCU Technology / 4096 Resolution
Smart Sense Technology for Servo Analytics
High Response, High Resolution Circuitry
Full Metal Case
1M Cycle, Long-Life Potentionmeter
H25T -Industry Standard Output Spline
Compatible with Fully Charged 2S LiPo Batteries
Overview
Designed with a full metal IP-67 rated waterproof case, this advanced programmable servo is Hitec's fastest low profile option for 1/10 buggy and touring car drivers. Powered by a 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter), bringing high resolution, rapid response, and patented Smart Sense technology to kick your ride into top gear!

Specifications
Back to Top ^

Application
1/8 scale on- and off-road vehicles
Bushing Or Bearing
Bearing
Connector Wire Gauge
20 AWG
Current Draw Idle
35mA / 40mA
Current Draw Stall
3500mA / 4500mA
Deadband
1µsec
Gear Material
Metal
Height
1.04" (26.5mm)
Length
1.61" (41mm)
Motor Type
Brushless
Programmable
Yes
Servo Operating Voltage
6.0 - 7.4V (HV)
Servo Size Category
Standard
Servo Type
Digital
Speed
0.06 sec/60 deg @7.4V, 0.08 sec/60 deg @ 6.0V
Spline Count
25-Tooth
Torque
111 oz-in (8.0 kg-cm) @ 6.0V , 153 oz-in (11.0 kg-cm) @ 7.4V
Type
Low Profile Waterproof
Weight
2.4oz (68g)
Width
0.83" (21mm)
