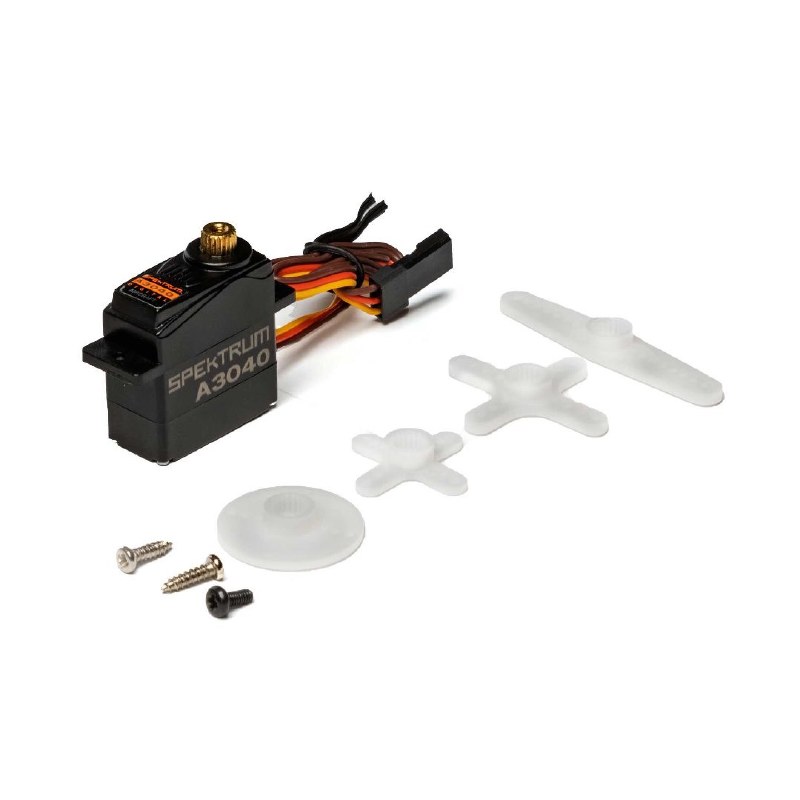

A3040 Mid Torque High Speed SubMicro Plastic Servo

Features

High speed
Low Cost
Low Deadband
Digital Precision
Metal Gears


Overview

This 0.10-second transit time (at 6 volts) 28 oz-in of torque, metal gear servo is an ideal combination of weight, speed and holding power for slow and park flyer aircraft. Ball bearing support around the output shank helps keep the servo precise for many flights to come.

Choose the A3040 servo for electric aircraft and sailplanes where the robust nature of metal gears is desired. The low deadband technology means that you’ll enjoy reliable accuracy and precision.



Specifications
Size Category: Minis and Micros
Type: Digital
Application: Slow and park flyer aircraft
Torque: 23 oz-in (1.7 kg-cm) @ 4.8V / 28 oz-in (2 kg-cm) @ 6V
Speed: .12 sec/60° @ 4.8 / .10 sec/60° @ 6V
Length: .93 in (23.6mm)
Width: .45 in (11.5mm)
Height: 1 in (25.5mm)
Weight: .44 oz (12.6g)
Bushing Or Bearing: Bearing
Bearing: Single
Motor Type: Cored
Connector Type: Z-connector
Gear Type: Metal
Voltage: 4.8 or 6.0V
