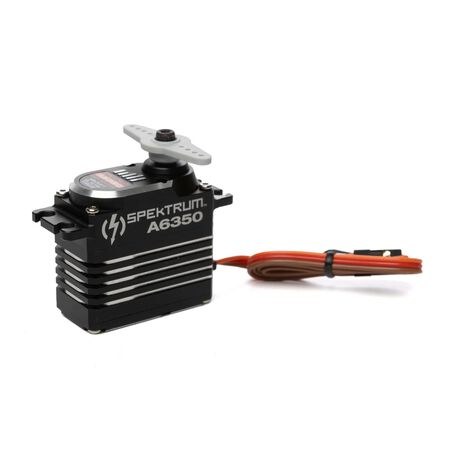

A6350 Ultra Torque / High Speed Brushless HV Servo

Features

Soft start helps prevent component and airframe damage during un-intentional initializations
Operating Frequency: 200hz to 333hz
Low wear and tightly meshed all metal gear train
Dual bearing supported drive train helps maximize smooth operation
Over Current and Temperature protection
Integrated servo failsafe holds last known position if signal is lost and power is maintained
Aluminum servo case helps keep operating temperatures low
High Voltage (HV) capable (6.0-8.4v input range)
Superior torque and speed in a standard servo size (61.4 kg-cm and .095 sec/60° @8.4v)
Durable and long-lasting brushless motor
Helpful initialization start tone lets pilot know when the servo is ready

Overview

Features
High Voltage (HV) capable (6.0-8.4v input range)
Superior torque and speed in a standard servo size (61.4 kg-cm and .095 sec/60° @8.4v)
Durable and long-lasting brushless motor
Low wear and tightly meshed all metal gear train
Dual bearing supported drive train helps maximize smooth operation
Aluminum servo case helps keep operating temperatures low
Soft start helps prevent component and airframe damage during un-intentional initializations
Over Current and Temperature protection
Helpful initialization start tone lets pilot know when the servo is ready
Integrated servo failsafe holds last known position if signal is lost and power is maintained
Operating Frequency: 200hz to 333hz
A6350 Ultra Torque High Speed Brushless MG HV Servo
The Spektrum™ A6350 Ultra-Torque / High Speed Brushless HV Servo is the next evolution in the expanding line of leading-edge performance servos from Spektrum". Designed with the extraordinarily strong and reliable A6300-series brushless gear train, the A6350 servo takes power and speed to the next level! The A6350 is a top-of-its-class workhorse that's ready for the demands of whatever giant-scale, 3D, or jet model you fly. And the A6350 servo is also a good choice for any application that requires high performance, high speed, and ultimate power.

Specifications

Bearing
Dual BB
Bushing Or Bearing
Bearing
Gear Type
Metal
Input Voltage
6.0V to 8.4V
Material
Aluminium
Maximum Servo Speed
0.145 sec/60 deg @ 6.0V; 0.115 sec/60 deg @7.4V; 0.095 sec/60 deg @ 8.4V
Maximum Servo Torque
500+ oz-in
Motor Type
Brushless
Overload Protection
Yes
Product Height
1.61" (41 mm)
Product Length
1.61" (41 mm)
Product Weight
3 oz (85g)
Product Width
0.83" (21 mm)
Servo Operating Voltage
4.8 - 8.4V (HV)
Servo Size Category
Standard
Servo Type
Digital
Spline Count
23 - Tooth
Torque
576 oz-in (41.5 kg-cm) @ 6.0V; 725 oz-in (52.2 kg-cm) @ 7.4V; 852 oz-in (61.4 kg-cm) @ 8.4V
