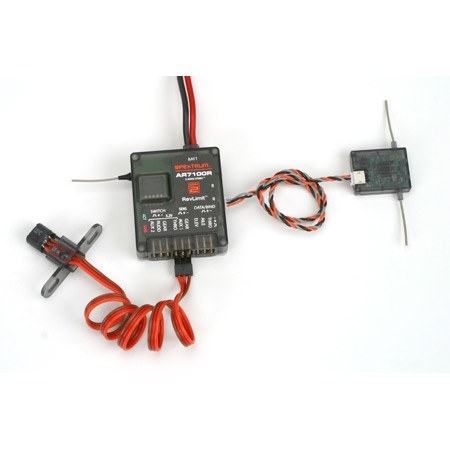

AR7100R 7-Channel DSM2 Heli Receiver with RevLimit

Features?
Includes integrated RevLimit RPM limiter with revolutionary backplate sensor for glow engines
Internal 5.2V 2A regulator for rudder and Aux 2 (for Gyro)
Has both regular straight-through input-output connections and an internal 5.2V 2A regulator for the gear and throttle channels
Includes one internal receiver and one remote receiver with a port for an optional second remote receiver
Compatible with all Spektrum and JR DSM2 radio and module systems
Two failsafe modes
Fail-on switch included

Overview?
The AR7100 is Spektrum?s first purpose-built receiver designed specifically for demanding heli applications. The combination of a primary internal receiver and secondary remote receiver allows the AR7100 to be installed in the best possible configuration for high-performance heli's while exposing the receiver to the greatest possible RF signal at all times. Additionally the AR7100R features Spektrum?s integrated RevLimit RPM limiter which provides the consistent rotor speed needed for outstanding 3D performance. Complete with two user-selectable failsafe modes a built-in 5.2V 2A voltage regulator and EC3 connectors the AR7100R is the best choice for heli pilots looking to add the safety security and clarity of Spektrum 2.4GHz DSM technology to their aircraft while reducing the amount of on-board equipment and simplifying installation.?

The AR7100 and AR7100R offer the benefits of multiple components in one compact unit keeping your installation neat and simple.

Specifications
Type: Full Range Heli Receiver
# of Channels: 7
Modulation: DSM2
Band: 2.4GHz
Dimensions (WxLxH): 47.3 x 40.2 x 14.2mm
Weight: 32.5 g
Voltage Range: 6.0 to 10.0 volts
Antenna Length: Main RX: 30mm (1) Remote RX: 30mm (2)
