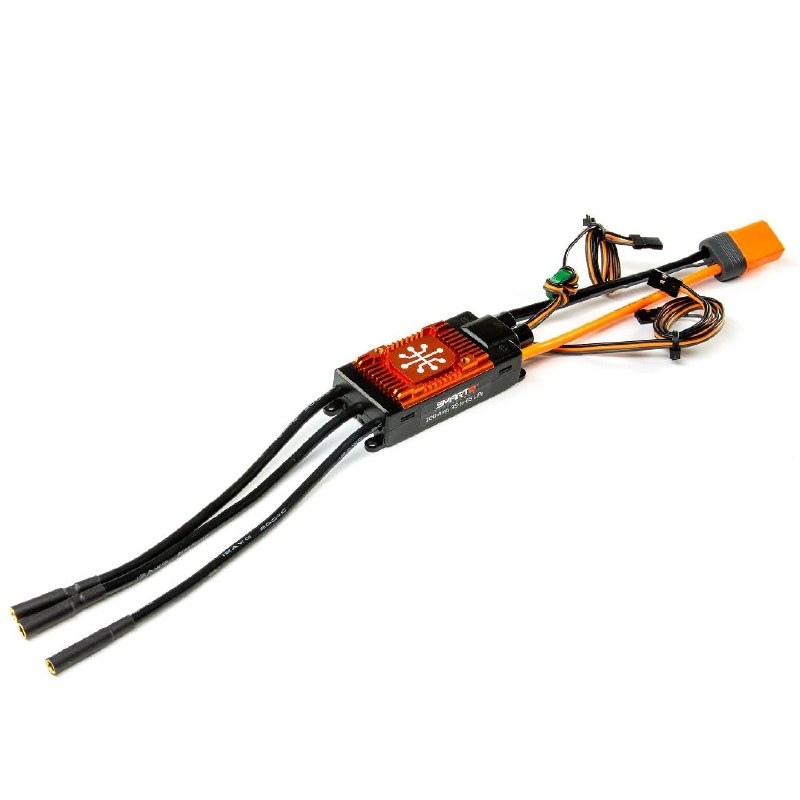

Avian 100 Amp Brushless Smart ESC 3S-6S

Overview

Product Features
Smart all-in-one telemetry
Fast, powerful 32-bit ARM M4 processor
Multiple options for easy programming:
Smart ESC Programming Box
SmartLink USB Updating and Programmer application
Throttle stick programming
Multi-point protection:
Over-current protection
Automatic LiPo low-voltage cutoff
Thermal protection
Failsafe protection
Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
Compact for easy installation in most applications
Ready to install — no soldering required
Rugged plastic case
Heat dissipating design
Tabs included for a hard mount
Aluminum heat sink for high efficiency
Cooling fan
Adjustable high-power BEC
Dual BEC power connectors
Firmware updatable through the Smart ESC Programming Box and SmartLink PC application
High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
Limited 1-year warranty

Product Overview
Like every component in the Spektrum™ Smart ecosystem, Avian™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your aircraft imaginable.

Avian Smart Air ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Avian Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Avian Smart Air ESCs, you'll be better connected to your aircraft than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM.

Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Needed to Complete
Spektrum™ Aircraft Receiver
Spektrum Smart Technology LiPo Battery
Spektrum Transmitter

What's in the Box?
(1) Spektrum™ Avian™ Smart ESC
(1) Spektrum Smart sticker sheet
(1) Product Manual

Video Overview


Specifications

Auto Cutoff
Yes
Battery Connector
IC5
Battery Input Lead
5.9" (150mm) 12AWG
BEC
Yes
BEC Continous Current
8A
BEC Maximum Burst Current
25A
BEC Type
Switch
BEC Voltage
6V/7.4V/8.4V adjustable
Brakes
Yes
Forward
Yes
Height
1.3" (33mm)
Input Voltage
3S - 6S LiPo
Length
3.0" (76mm)
Low-Voltage Cutoff Programmable
Yes
Maximum Burst Current
120A
Maximum Continuous Current
100A
Motor Connector
4mm Female Bullet
Motor Output Lead
5.9" (150mm) 12AWG
Overload Protection
Yes (Thermal protection as well)
Reverse
No
Type
Air
Weight
4.4oz (126g)
Width
1.4" (35mm)
