Avian 5055-650Kv Outrunner Brushless Motor

Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models
The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!

Key Benefits
Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.
Features
Lightweight design
Powerful and durable Rare-Earth Neodymium magnets
14-pole stator for smooth and precise propulsion

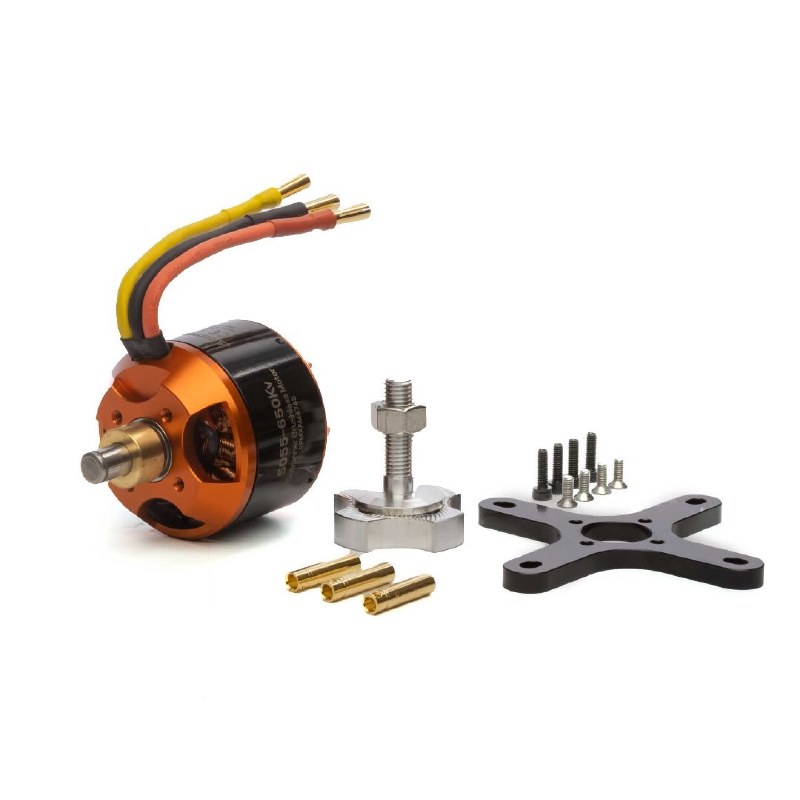

Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
Perfect match for the Spektrum Smart Avian 60 amp ESC
Perfect electric conversion upgrade for 60 size glow combustion power systems
Important Specs
Recommended Voltage Range – 18.5 - 22.2V / 5-6S LiPo
Recommended Propeller Range – 12x6 to 13x4 Electric Propeller
Recommended Model Flying weight – 3D 2950g (6.5 lbs) - Sport 4705g (10.5 lbs)
Max Wattage – 900w
Max Current – Max Burst Amps (85A) Max Continuous Amps (60A)

Specifications

Adjustable Timing
No
Connector Type
4mm Bullet
Input Voltage
18.5-22.2V (5-6S LiPo)
Maximum Burst Current
2200 Watts
Maximum Continuous Current
65A
Motor Type
Brushless - Outrunner
Product Length
2.17" (55 mm)
Product Weight
10.5
Recommended Prop Range
12x6 - 13x4E
RPM/Volt (Kv)
650
Shaft Diameter
0.32" (8 mm)
Shaft Length
0.79" (20 mm)
