Digital Mega Servo HS-5805MG: Universal

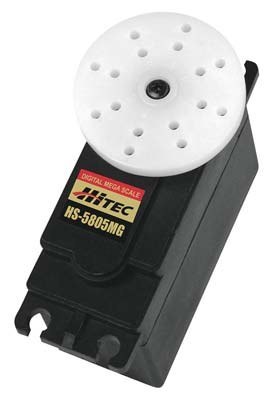

This is the Hitec HS-5805 Mega Scale Digital Metal Gear Servo.

FEATURES: For .60 class or larger aircraft, 1/4 scale car steering or throttle
and gasoline powered boats
Programmable digital amplifier with MOSFET drive
Four metal gears with resin first gear
Dual ball bearings
Heavy duty horns and hardware
Water and dust tight

INCLUDES: Hitec HS-5805 Mega Scale Servo with S Connector
Mega Horn and Hardware set, HRCM6318
Y-Harness
Instruction Sheet

REQUIRES: Installing in model, connecting linkage and connecting to receiver,
see COMMENTS below

SPECS: Operating Speed: 0.19sec/60° @ 4.8V
0.14sec/60° @ 6.0V
Output Torque: 19.8kg cm (275oz-in) @ 4.8V
24.7kg cm (343oz in) @ 6.0V
Power Consumption: 800mA unloaded
Size: 2.59 x 1.18 x 2.26" (66 x 30 x 57.6mm)
Weight: 6.95oz (197g)
Length of Four Point Horn: 2.4" (61mm) at longest point
Length of Single Arm: 1.8" (47mm) from center of hole to end
Diameter of Round Horn: 1.6" (39.8mm)
Thickness of Horns: 0.20" (5mm)

COMMENTS: Due to the high power consumption of the servo, a NiCd or NiMH
battery with at least 1200mAh (preferably 5-cells and 6V) must be
used.
Also, with a BEC equipped receiver the power should be fed directly
to the servo without going through the BEC regulator. A Y-harness
and instructions are provided with servo.
