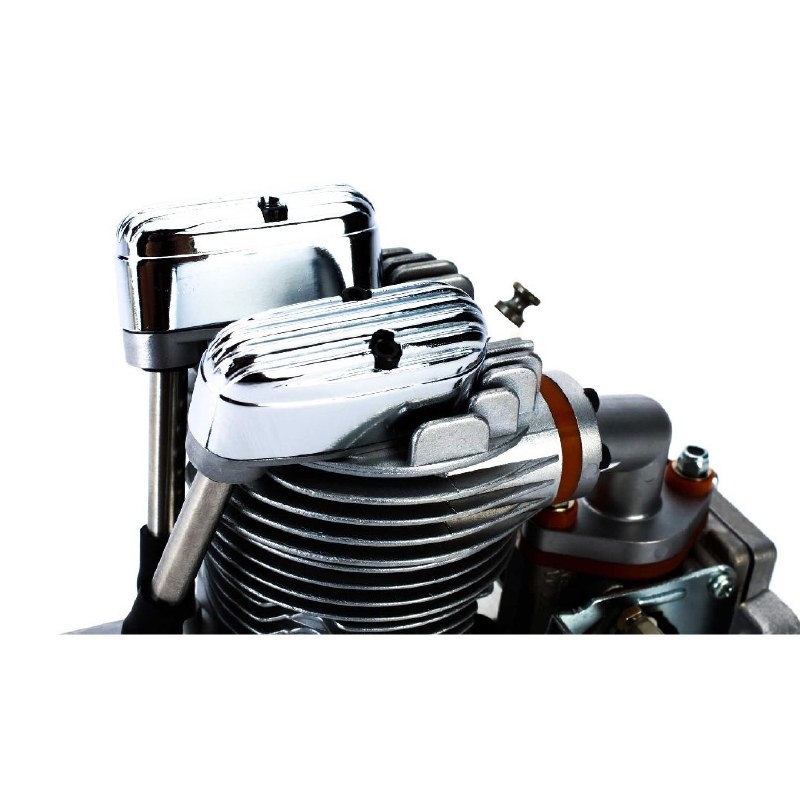

FG-30B 4-Stroke Gas Engine: BO

Features

4-stroke sound Saito engines are famous for
Horizon Hobby recommends the use of Red Line or Power Model synthetic oil only, at a mix ratio of 16:1 – 20:1
Smaller Saito™ 4-stroke ignition module provides easy starts and reliable performance with a lower power consumption
Complete with muffler and engine mount
Equivalent power output as the FA-180 at 10% of the fuel cost
Gasoline version of the popular FA-180 glow engine

Overview

Key Features
Gasoline version of the popular FA-180 glow engine
Equivalent power output as the FA-180 at 10% of the fuel cost
Smaller Saito™ 4-stroke ignition module provides easy starts and reliable performance with a lower power consumption
4-stroke sound Saito engines are famous for
Complete with muffler and engine mount
Horizon Hobby recommends the use of Red Line or Power Model synthetic oil only, at a mix ratio of 16:1 – 20:1
Specifications

Benchmark Prop
APC 16 x 8 @ 9300 rpm
Bore
1.41 in (36.0mm)
Crankshaft Threads
M8 x 1.25mm
Cylinder Type
Ringed
Cylinders
Single
Displacement
1.80 cu. in (29.10 cc)
Engine (Only) Weight
31.0 oz (879 g)
Ignition Weight
4.0 oz (114 g)
Muffler Threads
15mm
Muffler Type
Cast
Plug Type
CM-6 spark plug
Power Type
Gas
Prop Range
15 x 8 - 18 x 6
RPM Range
2,000-10,000
Stroke
1.12 in (28.6mm)
Total Weight
38.0 oz (1078 g)
