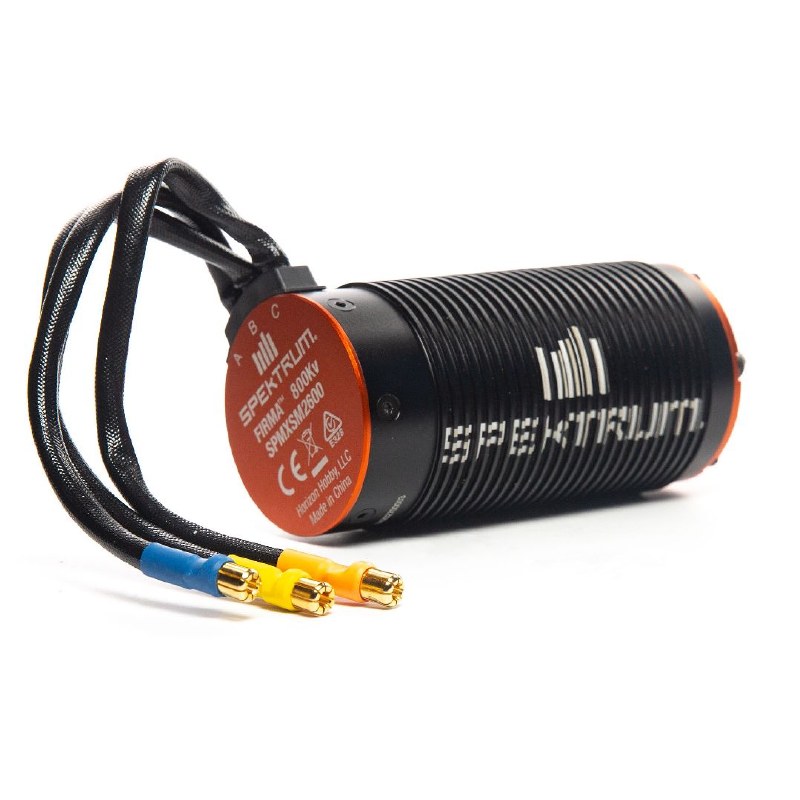

Firma 56111 800Kv 4-Pole Brushless Motor: 8mm

Overview
The Firma 800Kv brushless motor is a perfect option for Arrma Roller kits and 1/5 scale bashers and monster trucks with a 3-8S LiPo setup. Featuring a low cog 4-pole design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 8mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 160 Smart ESC.

Features
Perfect upgrade for 1/5 scale bashers and monster trucks running on 3-8S LiPo batteries.
High efficiency design
8S LiPo power capable
High-quality 4-pole sintered rotor
6.5mm gold plated bullet connectors
High-quality construction with precision ball bearings and hardened steel 8mm shaft
Safe-D Shaft provides a c-clip locking point for preventing pinion gear slip

Specifications

Adjustable Timing
No
Application
Arrma Roller Kits
Bushing Or Bearing
Bearing
Connector Type
6.5mm Bullet
Connector Wire Length
7.48" (190 mm)
Efficiency
87%
Input Voltage
11.1 - 29.6V (3 - 8S)
Maximum Continuous Current
110A
Motor Design
Inrunner
Motor Size
5611
Number of Poles
4
Outer Diameter
2.2" (56 mm)
Product Length
4.4" (112 mm)
Product Weight
39.86oz (1130g)
Recommended Speed Control
Spektrum Firma 160A Brushless Smart
Resistance
.0049 ohms
RPM/Volt (Kv)
12,475 / 15V
Shaft Diameter
0.3" (8 mm)
Shaft Length
0.867" (22 mm)
