FXC1806-2300-MK Lumenier Motor

This Lumenier multi-rotor motor produces silky smooth performance with strong thrust at a great value. Perfect for spinning a 5" prop on the QAV250 and similar mini quads, giving you very high performance on 3s. The FXC version of Lumenier motors support direct fitment of carbon fiber propellers such as the Maytech 5x3 Carbon Fiber Props.

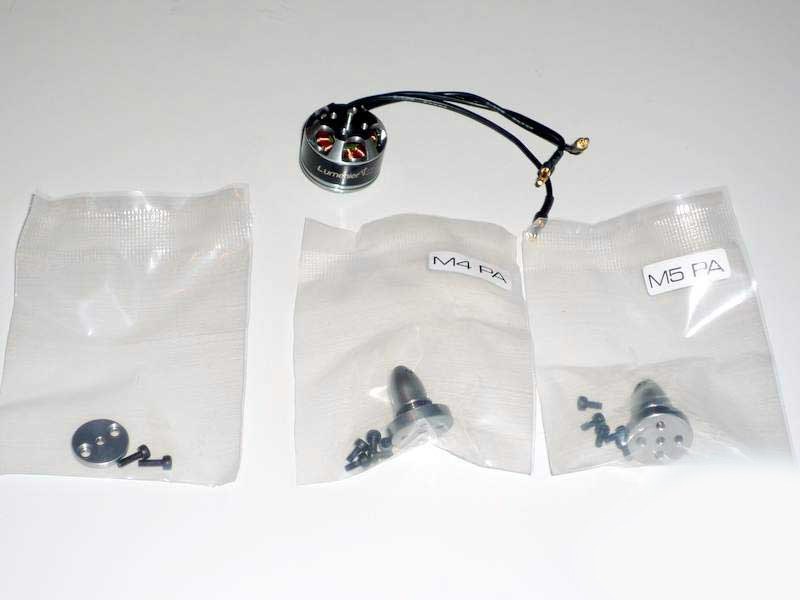

The motor comes with a detachable 5mm and 4mm diameter prop adapter with a spinner, mounting screws and mounting hardware for carbon fiber props.

Rated for use with 2-3S LiPo. It comes with 70mm long motor wires with bare wire ends. This motor uses the high quality parts and bearings.


Specifications:
•KV: 2300
•Configuration: 12N14P
•Stator Diameter: 18mm
•Stator Length: 6m
•Shaft Diameter: 2mm
•Motor Dimension (Diameter x Length): F23×18.5mm
•Weight(g): 18g (without prop adapter)
•ldle current(10)@10v(A): 0.6A
•No.of Cells(Lipo): 2-3S
•Max Continuous current(A)180S: 14A
•Max Continuous Power(W)180S: 150W
•Max. efficiency current: (3-8A)>83%
•Internal resistance: 117mO
