GoPro Hero 3 FPV ImmersionRC Cable With Power

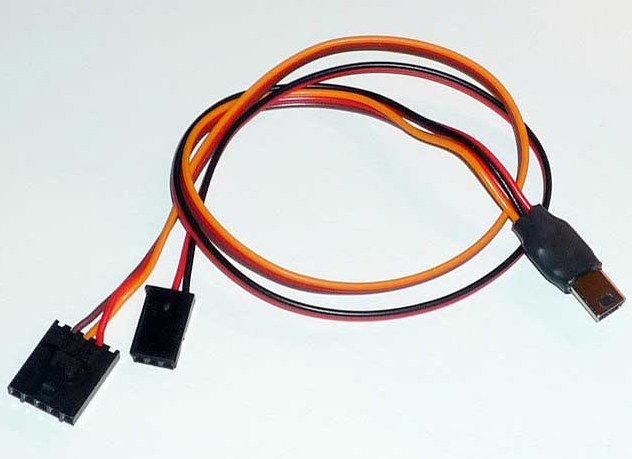

Beside the FPV audio and video feed from a GoPro 3 Hero HD camera to an Immersion RC video transmitter this cable also offers a power feed for the GoPro 3 camera on a secondary power cable. The USB connector fits the GoPro Hero 3 cameras AV plug and the 5 pin Molex type connector has been provided to be plug and play with the video 2.4GHz and 5.8GHz transmitters designed and manufactured by Immersion RC. The 5 pin Molex connector has the following connections:

Brown - Ground connection
Orange - Video connection
Red - Audio Left connection

The power requirement for the GoPro camera is minimum 1A at 5V. The provided servo cable connections are:

Red - +5V (Do not exceed 5V)
Black - Ground

Please note: The Immersion RC or Fatshark transmitters CANNOT supply enough power on the 5V out line to power the GoPro camera in flight. DO NOT risk it, it will damage your Immersion RC transmitter - or you will loose your transmitter in the air!!!
