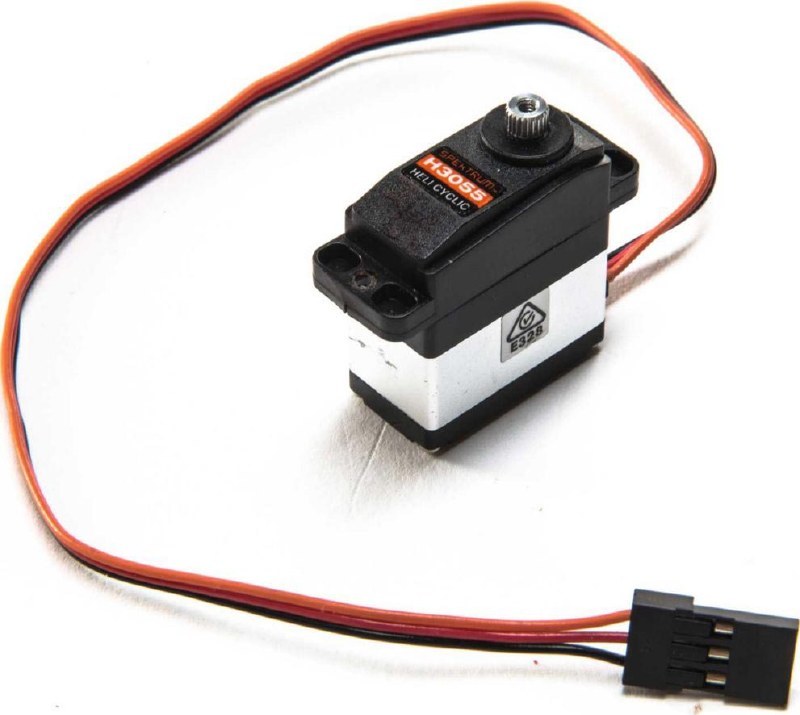

H3055 Mid-Torq Ultra-Speed Micro Heli Cyclic Servo

Overview

Upgrade your 250-450 size heli cyclic servos with the high speed and accurate H3055 Servo. Touting a blazing fast .053 transit speed, impressive 36 oz-in torque and industry leading position accuracy and holding power, these are a great sub-micro size servo to upgrade many Blade Bind and Fly models and a perfect pair for many 250-450 size kit models requiring a sub-micro size servo form factor. Frequency: 333Hz
Specifications

Back to Top ^

Application
250 - 450 size heli, cyclic
Bearing
Single
Bushing Or Bearing
Bearing
Connector Wire Length
7.87" (200mm)
Deadband
2
Gear Type
Metal
Maximum Servo Torque
4.8V 29 oz-in (2.1kg-cm), 6V 36 oz-in (2.6kg-cm)
Product Height
1.17" (29.6mm)
Product Length
0.91" (23mm)
Product Weight
0.46 oz (12.9 g)
Product Width
0.47" (12mm)
Programmable
No
Servo Operating Voltage
4.8 - 6.0V
Servo Size Category
Sub-Micro
Servo Type
Digital
Wire Gauge
22 AWG
