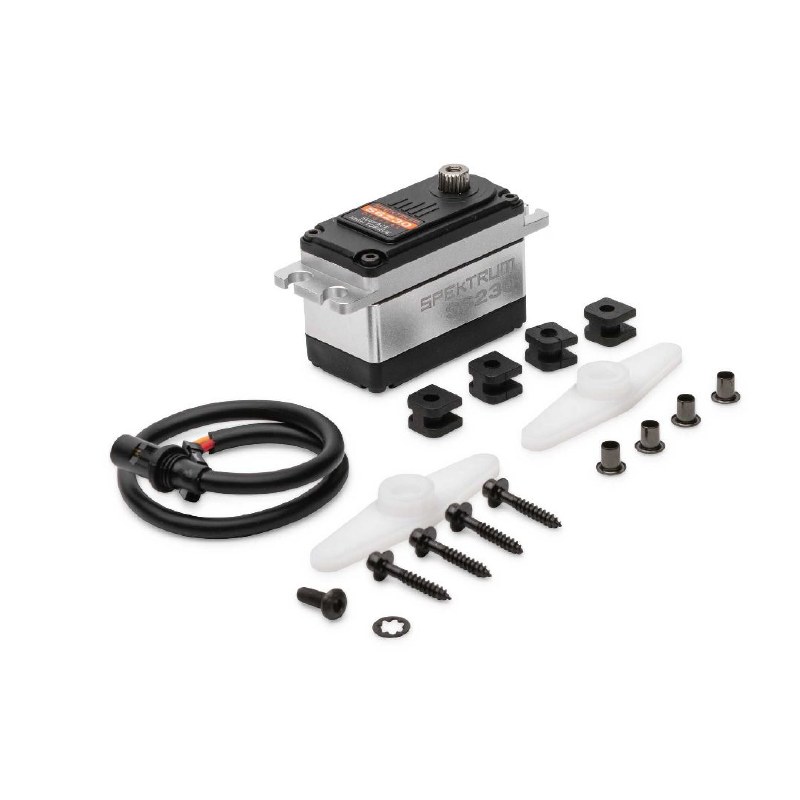

S6230 Ultra Torq Mid Speed Digital WP Metal Servo

Features
Back to Top ^

7075 Aluminum hard anodized output shaft/main gear with steel internal gears
Waterproof
1-Year Limited Warranty
23T output shaft
Aluminum mounting tabs
Removable wire harness with different lengths available
NMB dual main bearings
Aluminum case for good heat dissipation
Overview
Back to Top ^

Key Features
Removable wire harness with different lengths available
7075 Aluminum hard anodized output shaft/main gear with steel internal gears
Aluminum case for good heat dissipation
Aluminum mounting tabs
NMB dual main bearings
23T output shaft
Waterproof
1-Year Limited Warranty
Overview
The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. The S6230 and S6240 offer high-torque or high-speed performance in a more compact size for 1/10th scale crawlers or monster trucks where space is limited. The S6250 HV and S6260 HV are standard size servos for High-Voltage applications up to 8.4V, And the S6280 HV and S6290 HV feature all metal case construction for the ultimate 1/8th scale performance. All these servos feature Spektrum innovations like the removable wire leads that allow for custom lead length and ease of maintenance and all metal servo mounting tabs to keep them in place through the most extreme conditions.

Specifications
Back to Top ^

Application
Surface
Bearing
Dual
Bushing Or Bearing
Bearing
Connector Wire Length
7.87 in (200mm)
Current Draw Idle
9.8 mA @ 6.0V
Current Draw Stall
4900mA @ 6.0V
Gear Type
Metal
Input Voltage
6.0V
Material
Metal / Plastic
Maximum Servo Torque
311 oz-in (22.4kg-cm) @ 6.0V
Part Type
Electronics
Product Application
Surface
Product Height
1.18 in (30mm)
Product Length
1.61 in (41mm)
Product Weight
2.1 oz (59.5g)
Product Width
0.82 in (20.8mm)
Programmable
No
Rotation Range
120 deg
Servo Operating Voltage
6.0V
Servo Size Category
Standard
Servo Type
Digital
Spline Count
23 Teeth
Wire Gauge
22 AWG
