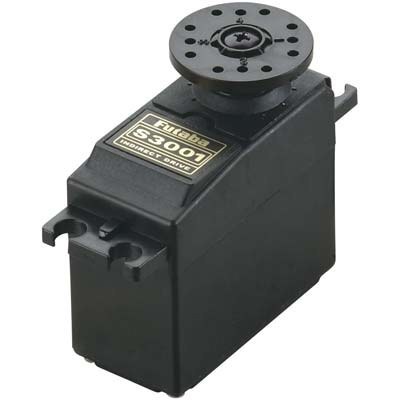

SERVO S3001A(FCA)

This is a Standard Servo with a Ball Bearing on the output shaft.
This has a "J" connector and uses a nylon gears.

This servo can produce high-current draw from your batteries.
If using NiMH or LiPo batteries make sure they are capable
of delivering sufficient amps.

FEATURES: Single Top Ball Bearing
Same mounting as S148 and S9201 (individual rectangular grommets)
3-pole motor
Nylon gears

INCLUDES: One S3001 Standard Servo
One accessory package

SPECS:    Dimensions: 1.6 x 0.8 x 1.4" (40 x 20 x 36mm)
Weight: 1.6oz (45g)
Torque: 33 oz-in (2.4kg/cm) @ 4.8V
42 oz-in (3.0kg/cm) @ 6V
Transit: 0.28 sec/60? @ 4.8V
0.22 sec/60? @ 6V
