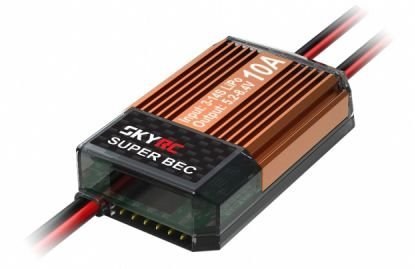

SkyRC 14S 10A BEC

Features

Compact high efficiency 5.2V 6.0V 6.8V 7.4V 8.4V selectable voltage regulator and low voltage monitor.
Ideal for 3-14 cell lithium polymer battery applications. Input voltage range from 10V Min to 60V Max.
High current capability of 10 Amps continuous, 15 Amp peak.
Protects against thermal and current overload(internal RED LED blinking).
Pin-Flag power switch with ultra bright super flux LED allows you to turn the BEC output power on or off remotely and gives low voltage warning.

Specifications:

Input: 3-14S LiPo (11.1 to 60Volt)
Output: 5.2V 6.0V 6.8V 7.4V 8.4V 10A @ 6V (Peak 15A @ 6V)
Adjustable Low Voltage Alarm Setup: 10-60V
Switch Type: Fail Safe(Fail-Safe-On) Pin-Flag Contactless Type
Size: 15.7mm(H) x 31mm(W) x 54mm(L) Weight : 45g (Excluding Cables)
Contents: Main Unit 1PC, Power Switch 1PC, Operating Manual 1PC
