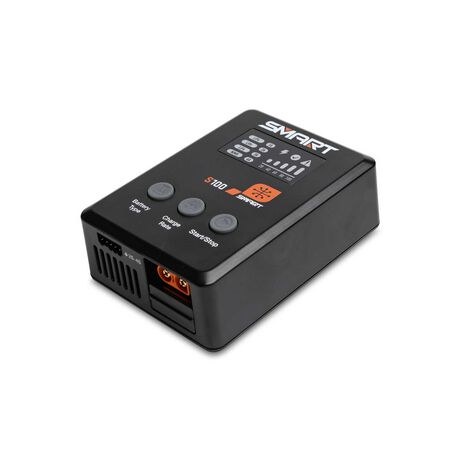

Smart S100 G2 USB-C Charger

Introduction
The S100 Smart USB-C Charger — from the new generation of Spektrum™ Smart electronics — brings today's most advanced and user-friendly charging technology to RC pilots and drivers of all skill levels.

Features
Advanced, user-friendly Smart charging technology that fits into any hobby budget
Meter display shows available wattage on startup, making it easy to know how much power your USB power supply can deliver
Delivers up to 100W of charging power with appropriately rated power supply and USB-C cable
Charges AND balances Smart G2 batteries with one simple IC3® or IC5® connection — no separate balance lead needed
Auto Charge recognizes Smart battery charging parameters and begins safe, accurate charging automatically when connected
Charges virtually any RC LiPo battery (use Smart batteries to benefit from all charger features)
Smart software tracks and stores numerous smart battery data
Includes IC3® and IC5® charging output ports — eliminating the need for a separate IC3® or IC5® adapter to charge Spektrum Smart batteries
Charges up to 4S LiPo/LiFe/LiHV batteries
Includes an efficient, low-noise cooling fan
Sleek, sturdy case fits well on a workbench and in pit or field bags
IC3® and IC5® connectors are backward compatible with EC3™ and EC5™ connectors
Overview
With its up to 100W power, new user interface, and ability to fast charge Smart batteries on either the IC3® or IC5® integrated output port, the S100 charger offers a versatile and truly hassle-free charging experience. You can charge virtually any RC battery with the S100 charger. Use it together with Smart batteries, and you'll be amazed by its incredible functionality and performance.

The S100 Smart USB-C Charger makes battery charging the easiest it has ever been. Its Auto Charge feature recognizes your Smart battery's parameters, such as chemistry type and charge rate, and begins safe, correct charging automatically when the charge lead is connected.

Balancing Smart batteries is just as simple. The S100 charger will balance your Smart G2 packs through the same single IC connection used for charging. No separate, confusing balance leads are required.

Powered by an included USB-C cable, the S100 is a convenient charging solution for those new to RC. All you need is a common USB-C power adapter, and you're ready to go.

Specifications

Application
RC Model Battery Charger
Battery Balance Connector
JST-XH
Battery Temperature Monitoring
Yes
Battery Type
LiFe (3.3V per cell), LiHV (3.8V per cell), LiPo (3.7V per cell), Smart NiMH (1.2V per cell)
Connector Type
IC3, IC5
Display
LED
Input Voltage
DC 5.0 - 20.0V, USB-C
Integrated Balancing
Yes - Internal Balancer & External Adapter
Low Input Voltage Protection
Yes
Maximum Charge Rate
1A / 2A / 3A / 6A User Selectable
Over Current Protection
Yes
PC Connectivity
Yes
Peak Detection
Yes
Product Height
1.42" (36 mm)
Product Length
3.86" (98 mm)
Product Width
2.83" (72 mm)
Programmable
Yes
Selectable Charge Rate
Yes
Short Circuit Protection
Yes
Software Updates
Yes
Technology
Smart
Thermal Protection
Yes
