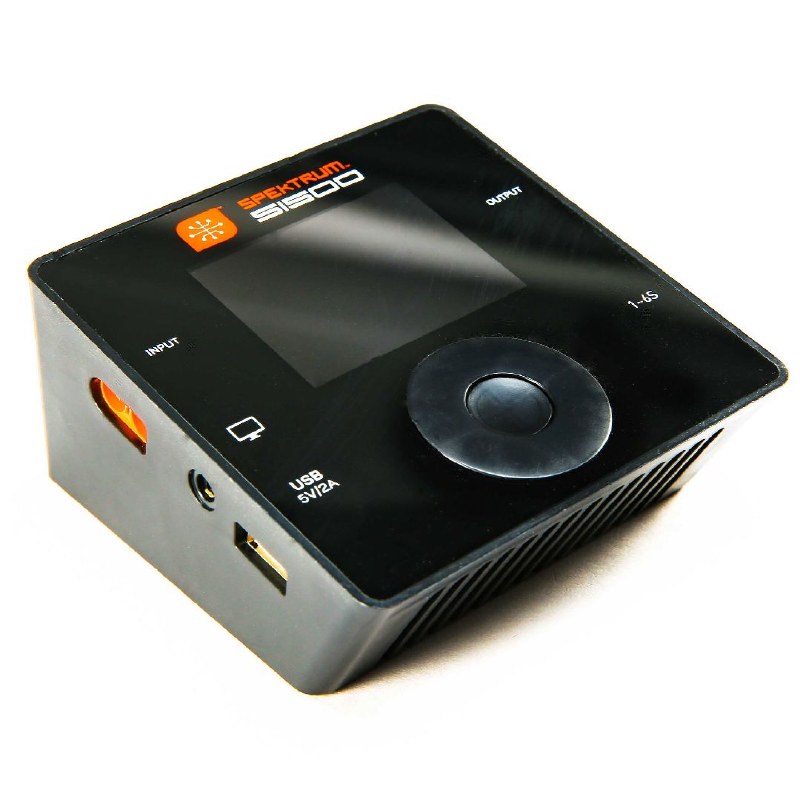

Smart S1500 DC Charger, 1x500W

Features
High 500W output quickly charges large, high-capacity and high cell count batteries with ease
Ideal for use with Spektrum™ Smart batteries featuring the IC3™ or IC5™ connector
Smart Technology recognizes unique Smart battery data for safe, convenient charging
Can also be used to charge batteries without Smart Technology
Enhanced touch wheel interface improves setup ease and precision
2.4-inch LCD screen with auto-brightness is easy to read even in extreme sunlight
Compact design with rounded edge fits in a bag or pocket for easy carrying
Internal cooling fan maintains a safe, efficient operating temperature

Overview
If you use large batteries that require high charging power, the 500W Spektrum™ S1500 DC Smart Charger is up to the challenge. Compact enough to carry in a pocket or field bag, the S1500 easily goes with you to the field, track, or any place where you need to charge your LiPo and NiMH batteries.

The S1500 charger's improved, extra-precise scroll wheel interface simplifies setup. When used with Spektrum Smart LiPo batteries having IC3™ or IC5™ connectors, the S1500 also uploads specific parameters and health data from the battery's integrated memory chip and displays it on the bright LCD screen for review — giving you the information you need to evaluate your packs and make the best charging decisions.

For input power, use a Spektrum Power Supply unit (SPMXC10201, available separately) or any compatible DC power source with the included IC3 power cable adapter. The S1500 charger has a USB port, a software update port, plus a safety timer and protection against heat, reverse polarity, short circuit, over-current, and low input voltage.

Needed to Complete
Spektrum™ Power Supply unit (see Completion Guide or Optional Accessories) or any compatible DC power source

What's in the Box?
(1) Spektrum™ S1500 DC Smart Charger
(1) IC3™/Banana Power Supply Cable
(1) Product Manual

Spektrum™ Smart Tech Video Overview


Specifications

Application
Battery Charger for Electric Powered RC Vehicles and Aircraft
Battery Balance Connector
JST-XH
Battery Temperature Monitoring
Yes, Temperature Sensor Included
Battery Type
1-6S LiPo, LiFe, LiHv / 1-16C NiMH, NiCd, Pb, LiFe (3.3V per cell), LiIon (3.3V per cell), LiPo (3.7V per cell), NiCd (1.2V per cell), NiMH (1.2V per cell), Pb (2.0V per cell)
Circuit Breaker
Yes
Cooling Method
Fan
Display
2.4" 320x320 IPS LCD
Height
1.9" (50mm)
Input Voltage
8-30V
Integrated Balancing
Y - Internal Balancer & External Adapter
Length
3.7" (95mm)
Low Input Voltage Protection
Yes
Material
Plastic Case
Maximum Charge Rate
26.1V, 20A
Model Memory
Smart ID
Output Connector
IC3 (compatible with EC3)
Over Current Protection
Yes
PC Connectivity
Yes - USB, external adapter required
PC Required
No
Peak Detection
Yes
Reverse Polarity Protection
Yes
Safety Timer
Yes
Selectable Charge Rate
Yes - Incremental (0.1A Increments)
Short Circuit Protection
Yes
Software Updates
Yes, via USB Port
Thermal Protection
Yes
Type
DC Powered Smart Battery Charger
Weight
8.5oz (240g)
Width
3.8" (97mm)
