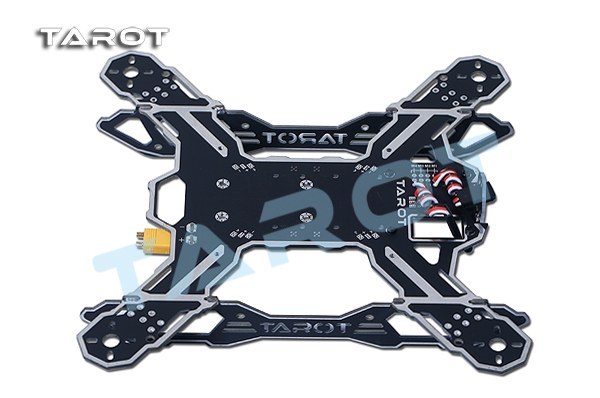

Tarot mini 200 FPV Kit TL200A

Description :

Tarot mini 200 FPV Kit is easy to assemble. The integrated PCB can be directly connected to electric accessories (camera, power, ESC, 5.8G TX, and antenna)
1.6MM carbon fiber applied, the structure is simple.
Light weight, long operation time.
Flight time with the suggest accessories and 15C/11.1V/1000MAH battery: 9 minutes.

Suggested Accessories :
5.8G TX: TL300N
Camera Lens: TL300M
Flight Controller: TL300D
5.8G antenna: TL300K
Propellers: TL300E
ESC: TL300G
Motor: 1860-2280KV TL300H1/ TL300H2
Battery Size: No longer than 70MM(L) x 32MM(W) x 20MM(H)
6CH receiver: TFR6
Specifications :Wheel Base: 200MM
Neat height/ Kit Height: 30MM/ 65MM
Neat length/ Kit length: 168MM/ 185MM
Neat Width/ Kit Width: 168MM/168MM
Neat Weight: 50G
Package Contents :Main boardx1 (167x167x1.5MM) 34.7G
Right landing gear boardx1 (168x29.5x1.2MM) 5.5G
Left landing gear boardx1 (168x29.5x1.2MM) 5.5G
Lens assembly board x1 (26x21.5x1.5MM) 0.9G
70MM servo lead x2 2.2G
XT30 connector x1 set
Battery strap x1
Battery Velcro strap x1
Instruction manual x1
