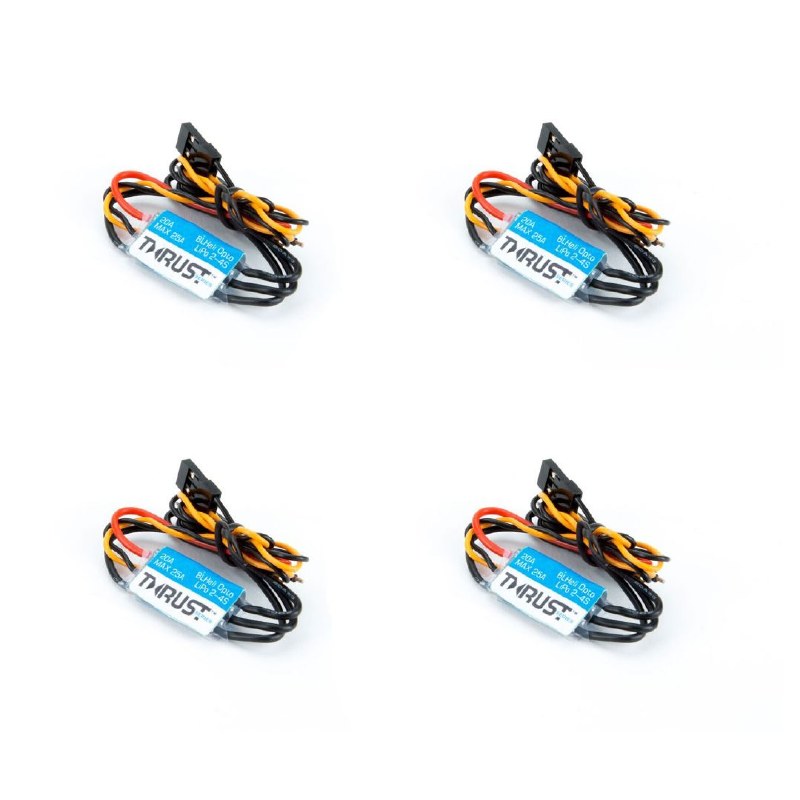

20A ESC BLHeli Opto Quad Pack

Features

Only 6.8g each
PWM Frequency: 18KHz
Pre-Flashed with BLHeli
Signal Frequency: 20-500Hz
Failsafe protection, over-heat protection and low voltage cutoff
20A Continuous with 25A (10sec)burst
Active Dampening and One Shot activated
4 Pack of Thrust ESCs
2-4s battery, Opto (no bec)
Size: 24.5 x 12.9 x 5.2mm

Overview

Key Features
4 Pack of Thrust ESCs
Pre-Flashed with BLHeli
Active Dampening and One Shot activated
20A Continuous with 25A (10sec)burst
Failsafe protection, over-heat protection and low voltage cutoff
2-4s battery, Opto (no bec)
Only 6.8g each
Signal Frequency: 20-500Hz
PWM Frequency: 18KHz
Size: 24.5 x 12.9 x 5.2mm

Specifications

Battery Input Lead
20 AWG
BEC
No
Input Voltage
9-17V (2-4S Battery, Opto, no BEC)
Maximum Burst Current
25A (10 seconds)
Motor Output Lead
20 AWG
Overload Protection
Thermal
Product Height
0.20 in (5.2mm)
Product Length
0.96 in (24.5mm)
Product Weight
0.24 oz (6.8g)
Product Width
0.51 in (12.9mm)
Programmable
No
