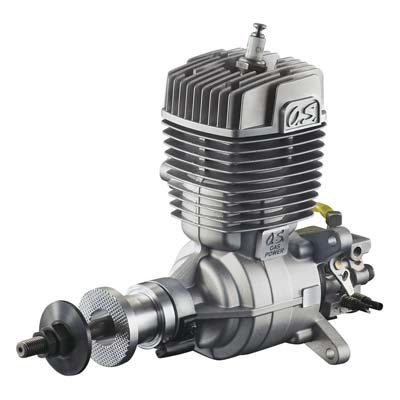

38300 GT33 Gas Engine

Second in the line of O.S. gasoline engines — but second to none in quality and performance!
When it comes to gasoline aircraft engines, the GT33 is in a class of its own. It has the muscle to swing larger props, and it stands out for many other reasons, too. The GT33 runs more quietly than comparable engines while exceeding their output, and it starts easily with electronic ignition that accepts many battery types. Once again O.S. has produced a gasoline powerhouse for the serious pilot!
Produces 10% more power than any other engine in its class!
Electronic ignition system offers fast, easy starting — and accepts LiFe, LiPo, NiCd and NiMH power.
Rear-mounted Walbro® carb and intake simplify mounting and installation.
O.S. E-5030 muffler effectively controls exhaust noise without compromising performance.
Includes Rcexl spark plug.

Specifications


Benchmark Prop
18 x 8 for break-in
Bore
1.417" (36mm)
Crankshaft Threads
UNF-2A 5/16-24
Crankshaft Type
Threaded
Cylinders
Single
Displacement
2.013 cu in (32.98 cc)
Engine (Only) Weight
34.72 oz (984 g)
Ignition Weight
3.70 oz (105 g)
Muffler Type
Pitts
Muffler Weight
5.65 oz (160.5 g)
Oil Type & Content
2-cycle oil at 30:1 - 50:1 mix ratio
Plug Type
CM6
Power Type
Gas
Product Height
6.1" (156.1mm) from bottom of mounting tab to muffler outlet
Product Length
6.1" (156.2mm) from carb to drive hub
Product Width
2.4" (70mm) center of mounting holes at mounting plate
Prop Range
18 x 10-12 - 20 x 8-10
RPM Range
2,000 - 15,000
Starter Type
Hand Held Starter
Stroke
1.276 (32.4mm)
Total Weight
2.7 lbs (1230 g)
