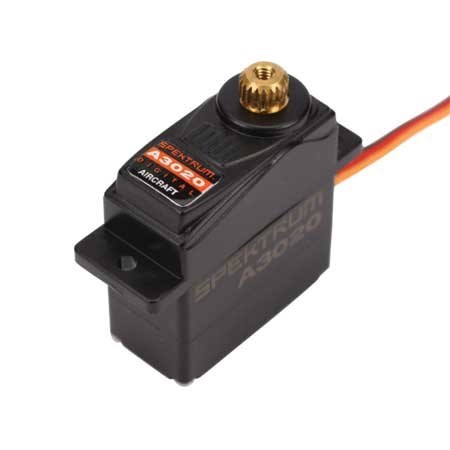

A3020 Sub-Micro Digital Hi-Speed Aircraft MG Servo

Features

High speed
Low Cost
Low Deadband
Digital Precision
Metal Gears


Overview

This servo's extremely tough metal gear train, digital precision and incredible .08 transit time is ideal for any slow and park flyer aircraft that requires the extra durability and crash resistance of a metal gear train. The low deadband technology means that you’ll enjoy reliable accuracy and precision.

The A3020 is the perfect combination of durability and high-speed performance at a great price. 3D and fast-moving aircraft will enjoy the control security this robust ball bearing supported servo provides.


Specifications
Size Category: Minis and Micros
Type: Digital
Application: Slow and park flyer aircraft
Torque: 18 oz-in (1.3 kg-cm) @ 4.8V / 22 oz-in (1.6 kg-cm) @ 6V
Speed: .09 sec/60° @ 4.8 / .08 sec/60° @ 6V
Length: .93 in (23.6mm)
Width: .45 in (11.5mm)
Height: 1 in (25.5mm)
Weight: .44 oz (12.6g)
Bushing Or Bearing: Bearing
Bearing: Single
Motor Type: Coreless
Connector Type: Z-connector
Gear Type: Metal
Voltage: 4.8 or 6.0V
