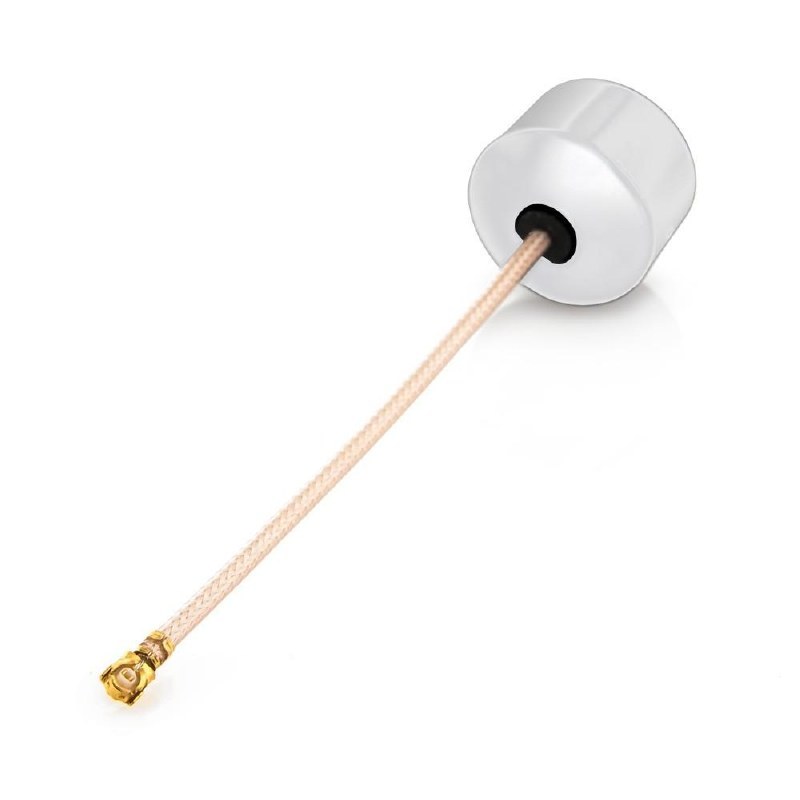

AXII 5.8GHZ UFL RHCP ANTENNA

DESCRIPTION
The revolutionary Lumenier AXII 5.8GHz Antenna with UFL connector now in left hand circular polarized version. A mini sized 5.8GHz FPV antenna with a 1.6dBic and near perfect axial ratio.
The Lumenier AXII 5.8GHz Antenna makes a giant leap forward in FPV antenna technology. Lumenier, in collaboration with Hugo of TrueRC, brings you one of the smallest, lightest and best performing FPV antennas in the world. The AXII antenna is an original design that features a new RF pathway technology (unique hybrid network) allowing it to be incredibly light weight (7.6g) and less than half the size of most other 5.8GHz CP antennas.

Even though the AXII is both small and light weight, it does not sacrifice any performance. In fact it out performs most other antennas in all categories. Precision engineering has given this antenna a near perfect 1.0 Axial ratio resulting in a true circularity. On top of that the AXII has a high max gain of 1.6dBic enabling better range and penetration. It has a wide bandwidth covering the popular FPV 5GHz band from 5.5GHz-6.0GHz, ensuring you have a clear and strong signal no matter which frequency you’re on.

The AXII is designed to be ultra durable and put up with the beatings FPV pilots put on their antennas. The cable is a semi-rigid, black coated RG402 cable and 45mm long, allowing for 90 degrees or more of freedom. The SMA connection is reinforced with a metal collar crimped to the base for extra support. The outer shell case is made from an impact resistant polycarbonate material, and it is sealed shut to guard the antenna elements inside.
SPECIFICATIONS:
- Gain: 1.6dbic
- Axial ratio: 1.0 (near perfect)
- Bandwidth: 5.5GHz-6.0GHz
- Weight: 7.6g
- Size: 70mm x 16mm
- Cable: Semi-rigid RG402
- Connector: UFL
- Works great as both a transmitting or receiving antenna
PACKAGE CONTENT:
- 1 x Lumenier AXII 5.8GHz Antennas with UFL connector
