PLEASE NOTE: This version is for the Phantom 2 only.

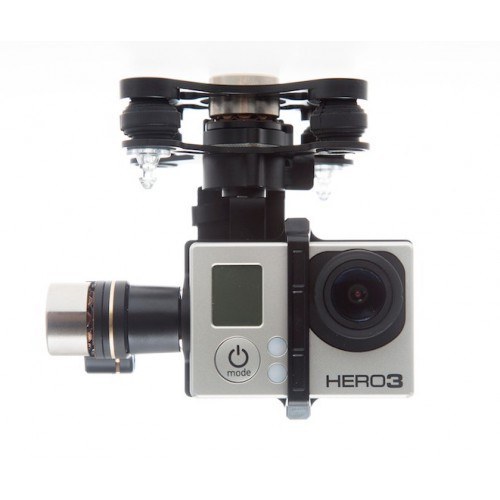

Zenmuse H3-3D Features
•3-axis high performance gimbal
•Effortless Setup
•Compatible with DJI flight control systems
•Part of the Zenmuse family
•Independent IMU
•Online Upgrade
Specs and Features
1.3-axis gimbal
2.High precision brushless servo control
3.Aluminum alloy body
4.Built-in IMU module
5.Light-weight
6.A2, WKM, NAZA-M, NAZA-M V2 ,PHANTOM 2 supported
7.GoPro3 and GoPro3+ supported
8.Zenmuse technology
Supported Camera: GoPro3, GoPro3+ Black and Silver
GCU Input Power: 3S~6S LiPo (12V~26V)
Assistant Software System Requirement: Windows XP SP3; Windows 7; Windows 8
Gimbal Operating Current
•Static current: 400mA (@12V)
•Dynamic current: 600mA (@12V)
Gimbal Input Power: 3S~6S (12V ~ 26V)
Operating Temperature: -10°C ~ 50°C
Gimbal Weight: 168g (camera excluded)
Gimbal Dimensions (With Damping Unit): 97mm X 95mm X 73mm
GCU Weight: 22g
GCU Dimensions: 42 mm X 32 mm X 9.3 mm
Controlled Angle Accuracy
Tilt/Roll: ±0.02°?
Yaw: ±0.03°
Maximum Controlled Rotation Speed: Tilt axis: ±130°/s
Controlled Rotation Range: Tilt axis control: ?130 ~ +45°
Camera not included.
