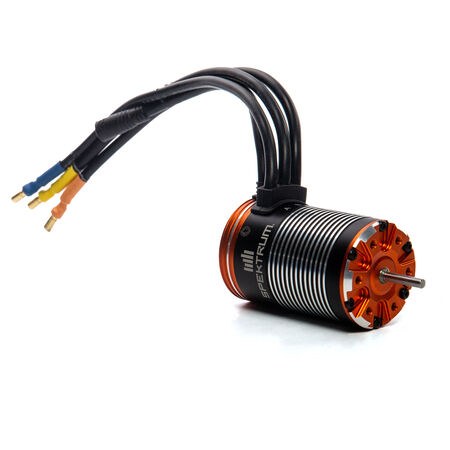

Firma 2100kv BL Sensored Crawler Motor

Overview
The Firma 2100Kv Sensored brushless motor is a great choice for 1/10 scale crawlers, rock racers, and trailers running on 2S – 3S LiPo power. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 3.5mm gold plated bullet connectors for easy installation. The Spektrum FIRMA 60A Sensored Brushless Smart Crawler ESC is required.

Features
Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" mm bore)
Perfect balance of speed and torque, great for trail and scale crawling applications
High-quality 4-pole sintered rotor
Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases' signals and always outputs precise signals indicated by rotor position. When installing simply match wire color to esc connectors
3.5mm gold plated bullet connectors
Waterproof sensor wire with locking plug and gasket
High-quality construction with precision ball bearings and hardened steel 1/8" shaft
Specifications

Application
1/10 scale crawlers, rock racers, and trailers running on 2S-3S LiPo power
Bushing Or Bearing
Bearing
Connector Type
3.5mm Bullet
Forward
Yes
Input Voltage
7.4 - 11.1V
Maximum Continuous Current
38A
Motor Size
540-2100Kv Brushless Sensored
Motor Type
Brushless - Sensored
Number of Poles
4
Outer Diameter
1.42" (36 mm)
Product Length
2.27" (58 mm)
Recommended Speed Control
Spektrum Firma 60A Sensored Brushless Smart Crawler ESC
Reverse
Yes
RPM/Volt (Kv)
2100Kv
Shaft Diameter
0.125" (3 mm)
Water-Resistant
Yes
